Creating Custom Contexts

Contexts are used to manage and maintain states and functionality that can be shared across different components and behaviors. Some examples of custom components include:

• A custom material
• The value of a score
• The time remaining in a game experience

Creating Custom Contexts

To add a new custom context to your Mattercraft project:

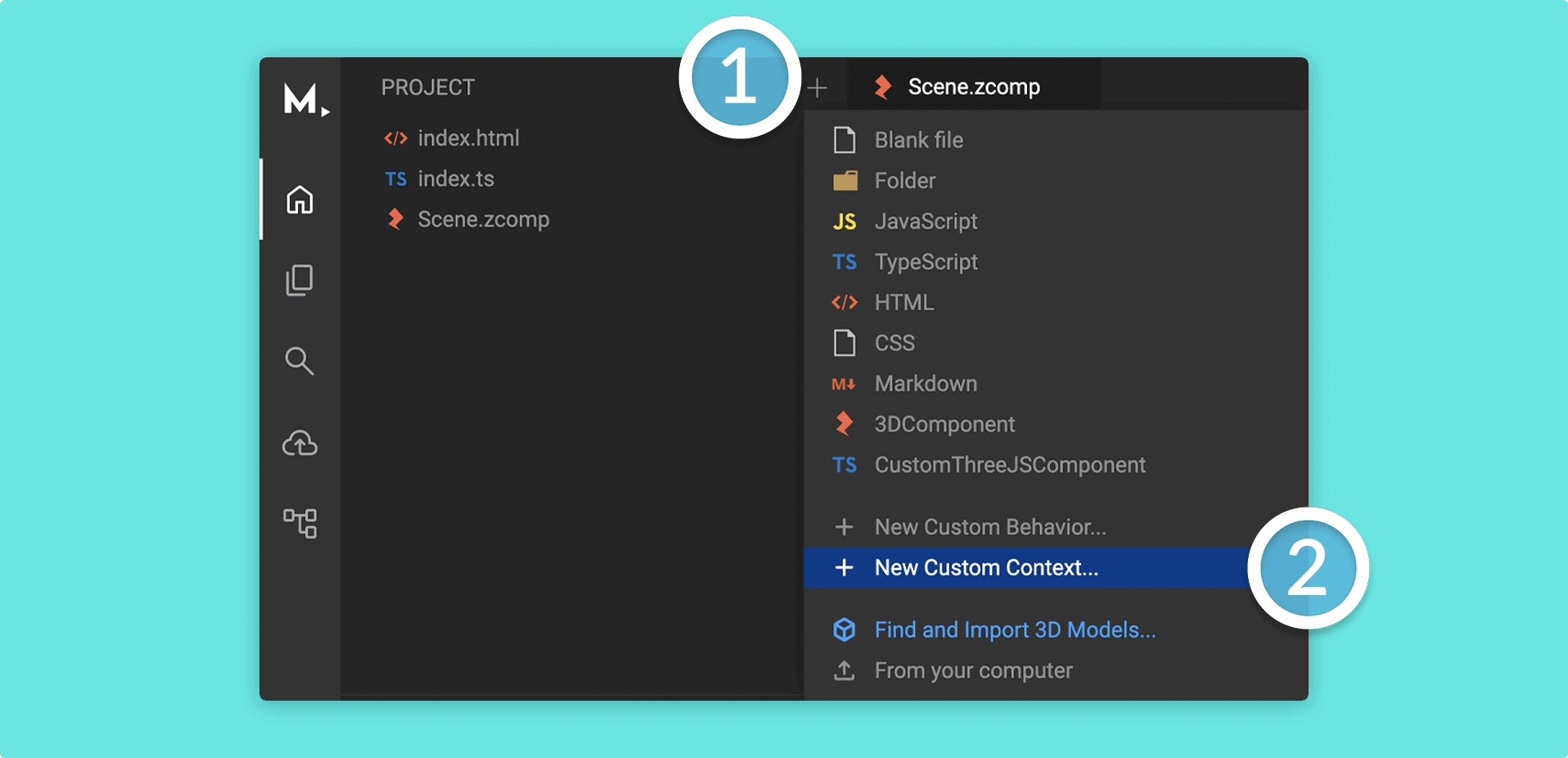

1. Click on the Left Menu
2. Click the + (plus) icon button to the top of the panel and click on + New Custom Context
3. Type a name for the context then click Create
4. The Left Menu will now have this context script file with the skeleton of a brand new context

Custom Context structure

Let’s look at the basic structure of a context:

import { Context, ContextManager, zContext } from "@zcomponent/core";

interface ConstructionProps {
  // Add any constructor props you’d like for your context here
}

@zContext()
export class MyContext extends Context<ConstructionProps> {

  // You can declare variables here if you’d like

  constructor(contextManager: ContextManager, constructorProps: ConstructionProps) {
    super(contextManager, constructorProps);
  }

  // You can declare functions here if you’d like

}

The @zContext decorator tells the Mattercraft editor that you’d like this script to appear as a context in your experience.

Contexts are JavaScript or TypeScript classes that extend the Context base class provided by Mattercraft.

See Mattercraft’s full API documentation here.

Using Custom Contexts

You can use custom contexts in custom behaviors and custom components. For example, the following code shows creating a score using a custom context and then displaying it in your zcomp via a custom behavior.

ScoreContext

import { Context, ContextManager, Observable, zContext } from "@zcomponent/core";

interface ConstructionProps {
  // Add any constructor props you’d like for your context here
}

@zContext()
export class ScoreContext extends Context<ConstructionProps> {

  // Create a variable called currentScore which
  // you can use in other custom scripts
  public currentScore = new Observable<number>(0);

  constructor(contextManager: ContextManager, constructorProps: ConstructionProps) {
    super(contextManager, constructorProps);
  }
}

// Create a function which can be used to get the current score
export function useCurrentScore(contextManager: ContextManager) {
  return contextManager.get(ScoreContext).currentScore;
}

DisplayBehavior

import { Behavior, ContextManager, zBehavior } from '@zcomponent/core';
import { Div } from '@zcomponent/html/lib/div';
import Scene from './Scene.zcomp';
import { ScoreContext } from './ScoreContext';

@zBehavior({ icon: 'scoreboard' })
export class ScoreDisplayBehavior extends Behavior<Div> {

  protected zcomponent = this.getZComponentInstance(Scene);

  constructor(contextManager: ContextManager, instance: Div, protected constructorProps: {}) {
    super(contextManager, instance);

    // Get the score context
    const scoreContext = contextManager.get(ScoreContext);

    // Display the current score in this instance
    // (a HTML Div in this example)
    this.register(scoreContext.currentScore, score => {
      instance.element.innerHTML = score.toString();
    });
  }
}

We use this.register() here because currentScore is an Observable. For a complete guide on when to use @zObserve() vs this.observe() vs this.register(), see Reacting to Value Changes.

Properties

Just as with custom behaviors and custom components, you can add properties to your contexts that can be controlled from the 3D editor.

For more information about controlling properties, see our dedicated Properties article.
